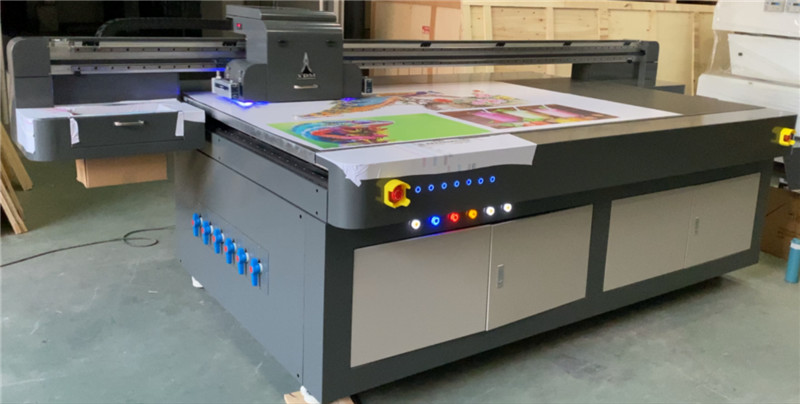

YDM 2513-E flatbed printer


  • YDM 2513-E flatbed printer
  • YDM 2513-E flatbed printer
  • YDM 2513-E flatbed printer
  • YDM 2513-E flatbed printer

Product Detail

Product Picture

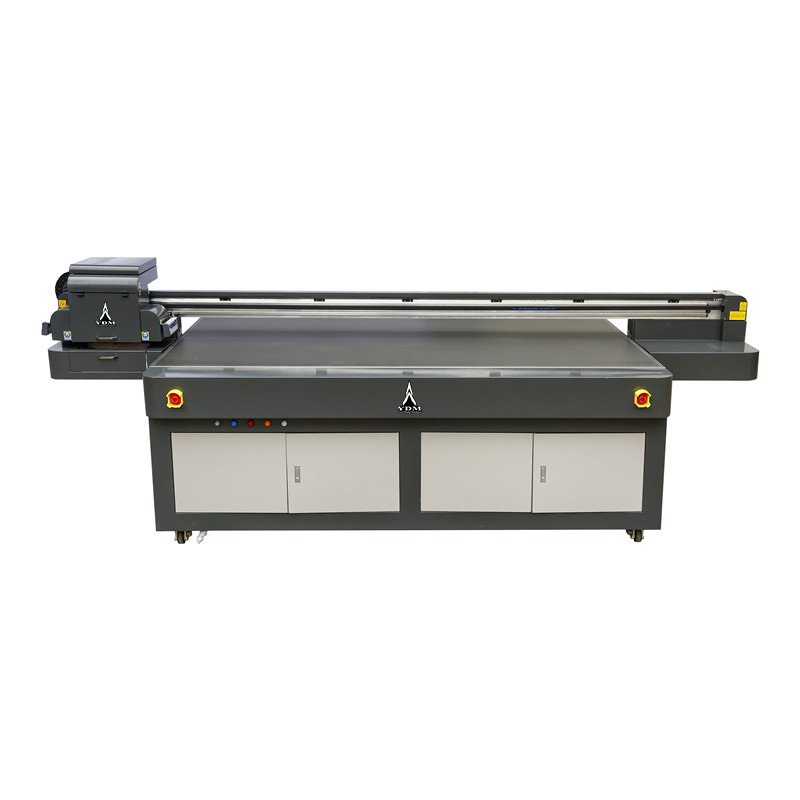

Front

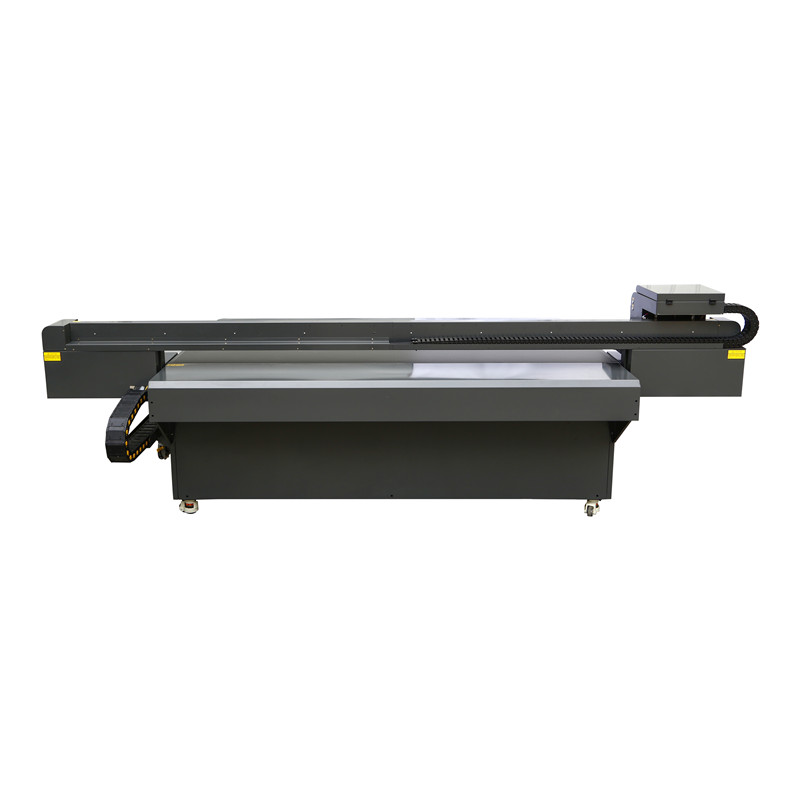

Back

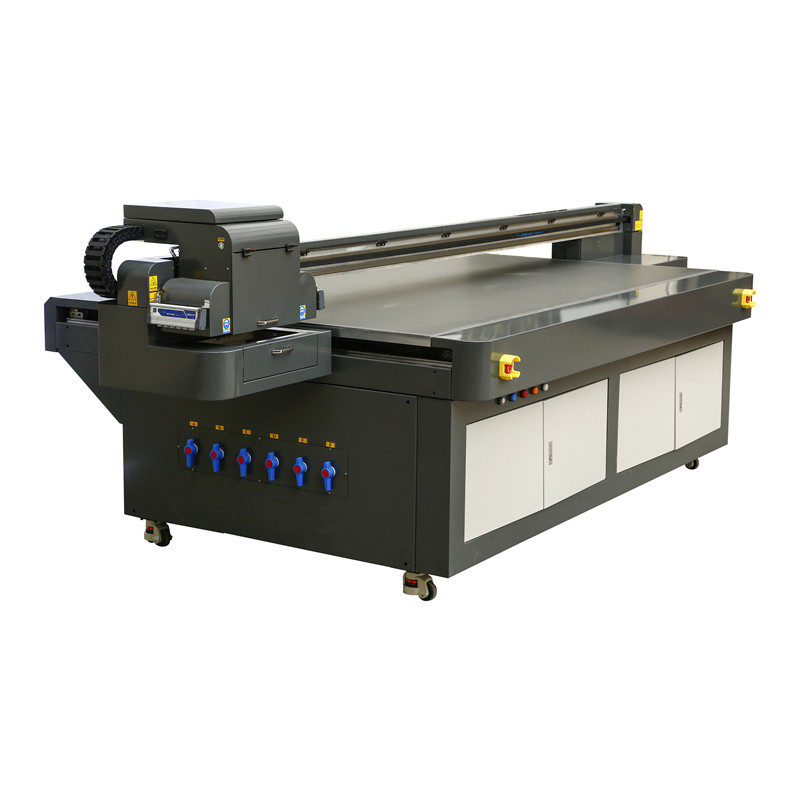

Left

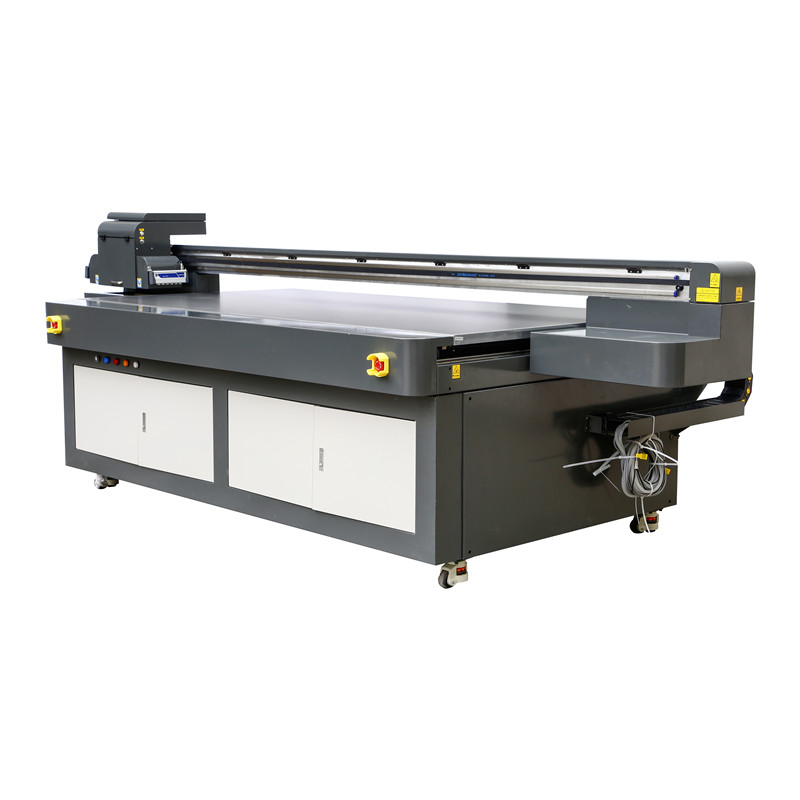

Right

Product Parameters

Product Name: YDM 2513-E flatbed printer

Print Technology
Printer Model 2513 UV Printer
Max. Print size 2500*1300mm
Print head model Epson/Toshiba CE4M,Ricoh G5,G6
Qty of Printhead 1-3 pcs/2-4pcs
Print Direction Unidirectional /Bi-directional
Print head height Semi-Automatic height adjustment (option Auto)
Print head cleaning Auto cleaning system
Print resolution Epson print head4 pass: 720*720 dpi
6 pass: 720*1080 dpi
8 pass: 720*1440 dpi
Toshiba CE4M4 pass: 600*600 dpi
6 pass: 600*900 dpi
8 pass: 600*1200 dpi
RICOH G54 pass: 720*600 dpi
6 pass: 720*900 dpi
8 pass: 720*1200 dpi
Ink System
Ink type UV ink
Ink color CMYK/ CMYK+W/2*CMYK+W+V/CMYK+W+V
 Ink tank volume 1L
Ink supply General or Negative ink supply system
Drying type Imported LED lamp curing
 White ink stirring Available
While ink circulation Available
Media
Media type Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard & others
Max.media thickness 100mm or customized

Operation

Operation Language Chinese / English
Operation system Windows XP/ Windows 7/Windows 10
Operation platform Completed vacuum adsorption platform
Operation Environment Temperature:20℃~28℃ Humidity:40% RH~60% RH
Computer configuration System:XP,win7,win10,32/64
CPU:≥ Intel i5
RAM: ≥8GB
Hard Disk: SATA 500G, NTFS
CD Rom: DVD recordable
Space for Disk C : ≥100 G
Others
RIP software RIprint/UnitedFancy/Printfactory( option :Photoprint)
Interface LAN
Color control Comply with ICC standards with curve and density adjustment function.
Image format TIFF,JPEG,POSTSCRIPT3,PDF
Power supply AC220V,50/60HZ
Power consumption 3.5 KW
Noise Standby < 32dB Working < 65dB
The UV lamp LED curing, 50000 hours long lifetime, water cooling

product details

2.2.1

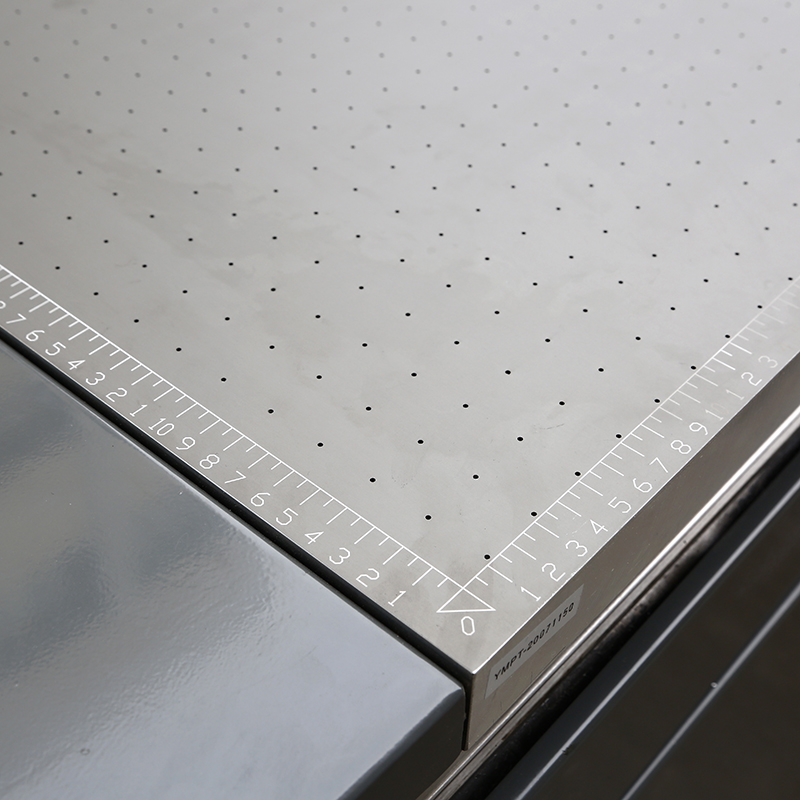

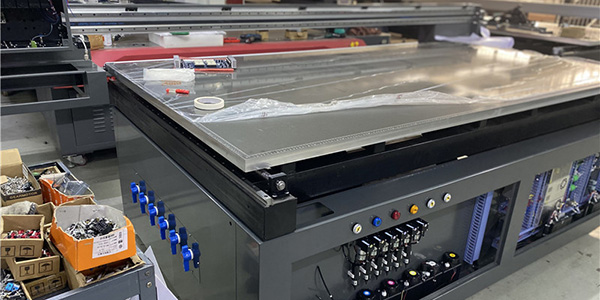

Vacuum Platform

Antioxidative vacuum platform with double teflon coating treatment,light weight with high hardness surface,scrath resistance and corrosion resistance,And mechanical alignment point to make sure the consistent media placement accurately.

2513-E (11)

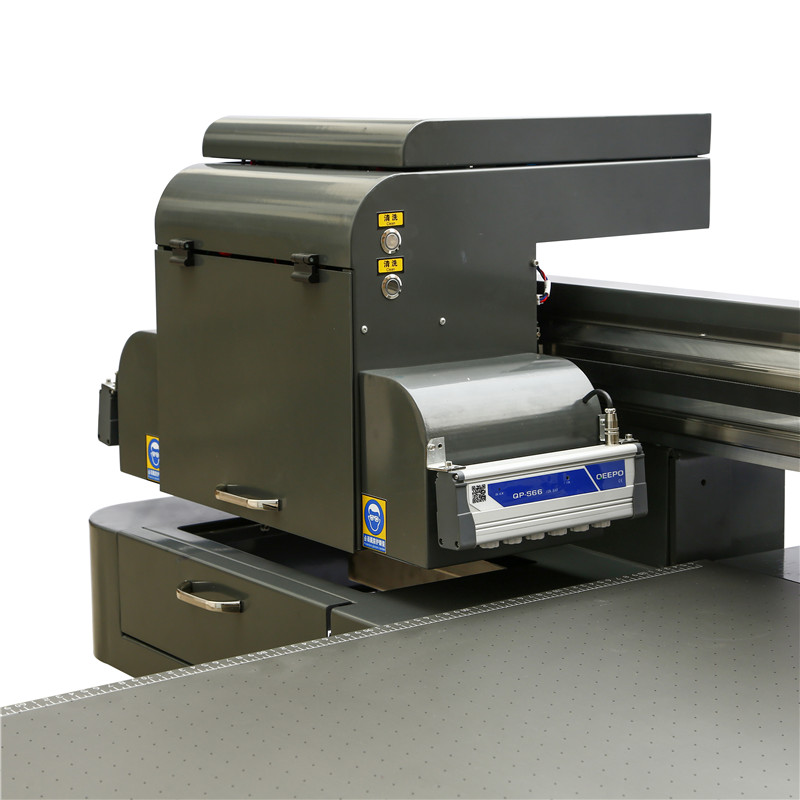

Carriage

Newly designed lightweight carriage, OEEPO or AP&T static eliminator, temperature controller, head cleaning button and carriage anti-collision device to ensure more stable and accurate printing

2513-E (15)

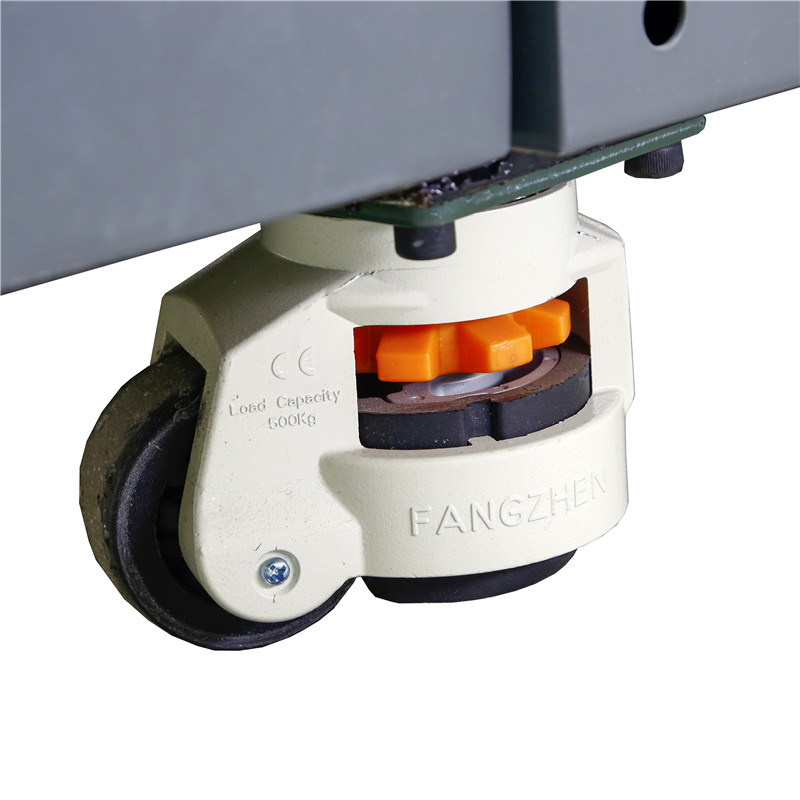

Universal wheel

Humanized high-quality universal wheels, one person can easily move, easy to use the printer

2513-E (14)

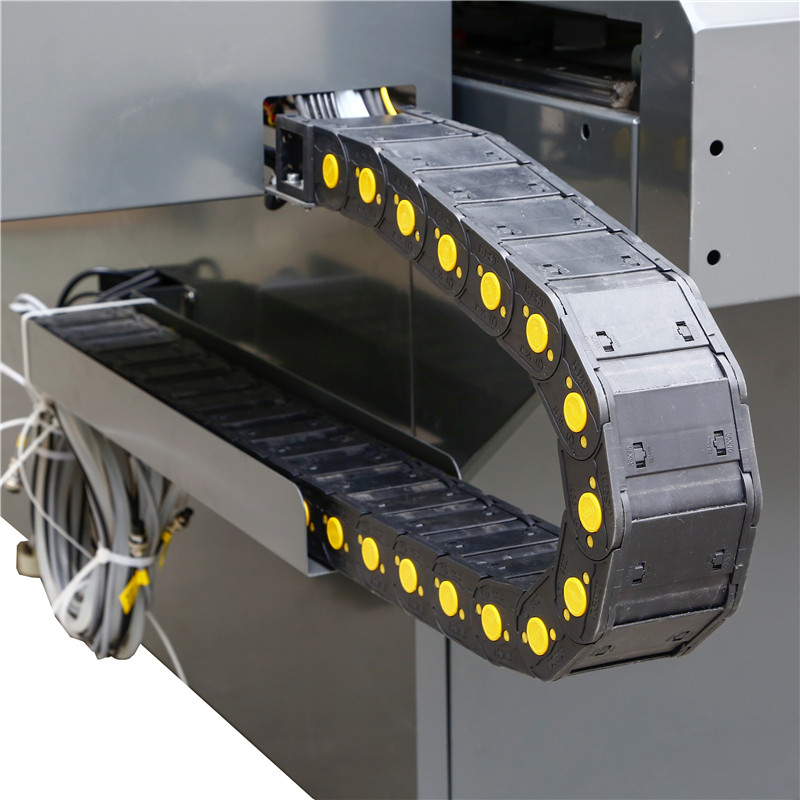

Imported drag chain

Imported high-speed silent drag chain, running noise is smaller and more at ease

OEM available always for you based on our rich experience in uv printer since 2005’s.

FOR printer, according your needs, you can choice install Epson Series print head(such as F 1080-A1, L1440-A1, F1440-A1 or I 3200-U1 print head), Toshiba CE4M or RICOH G5/G6 print head.

Epson Print Head

2513-10

Toshiba CE4M Print Head

Toshiba

RICOH G5 Print Head

2030-8

Whether you need a high-precision printer or fast printing printer, we can customize the printing solution that meet your needs.

yicai--7

CMYK W V can be printed at the one time,UV varnish is cured by passing it under an ultraviolet light which quickly dries and hardens the varnish, creating a super high gloss varnish and offers the highest protection between varnish, aqueous and UV. Varnishing a product with UV will make it look much more professional, as well as making it much more attractive.Varnishing increases the perceived quality of the product. In addition, it is an economical and user-friendly process that can be easily applied by adding spot finishes or additional processes to the entire sheet. It can be manipulated to achieve the desired result

yicai2--8

Productive Process

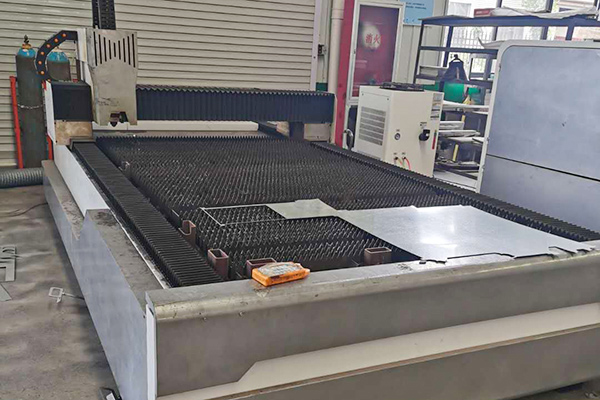

Machine Assembly&Testing

01 Machine Dynamic Design

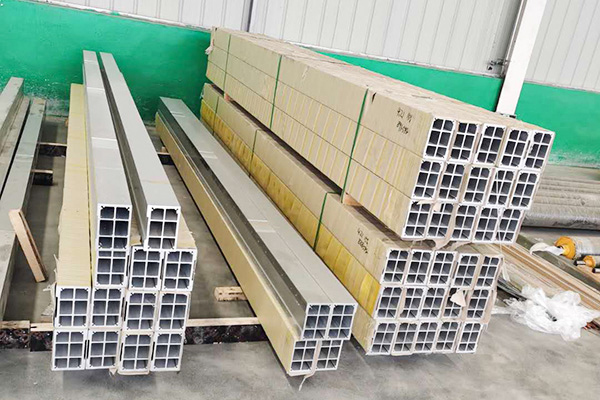

02 Raw Materials Preparation

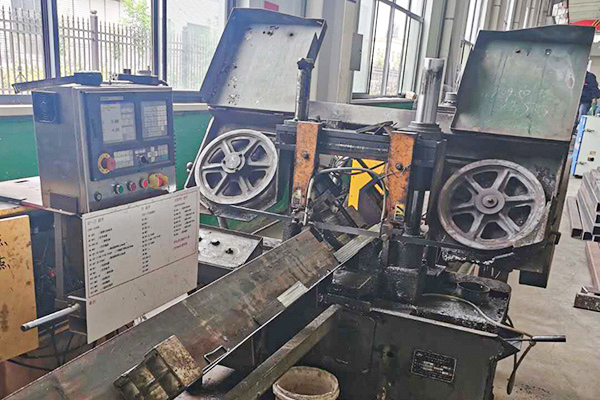

03 Nc Sawing Processing

04 Machine Modular Cutting Processing

05 Accessories Processing

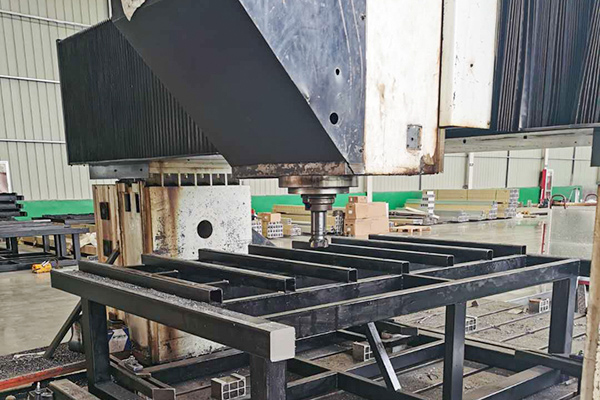

06 Lathe Bed Processing

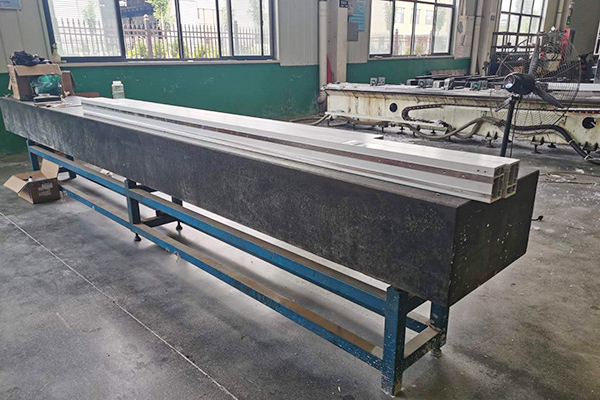

07 Aluminum Crossbeam Process

08 Welding Process

Printer production, test

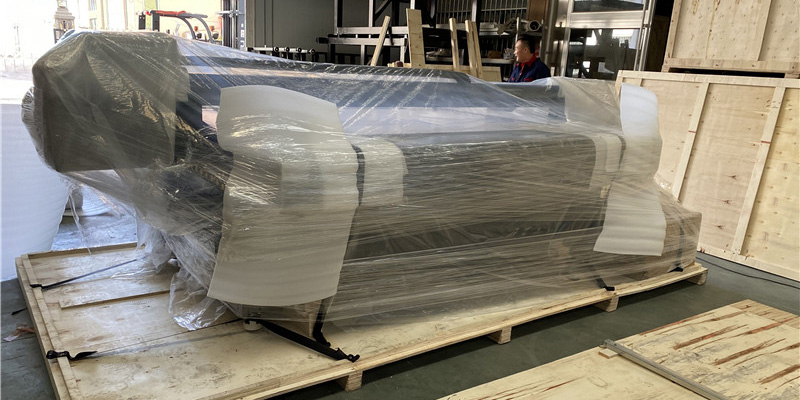

Package Delivery

Application

Acrylic Printing

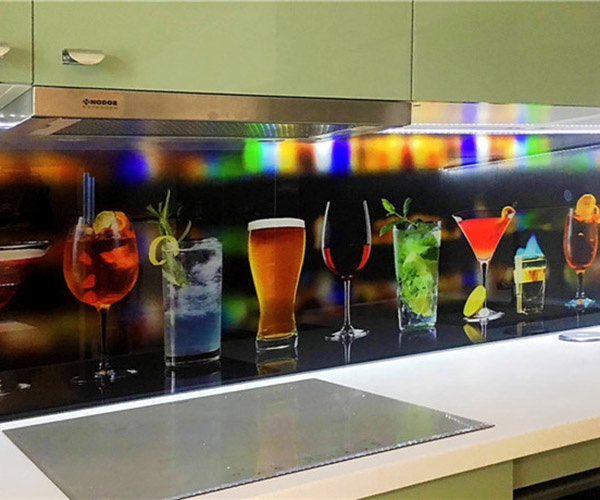

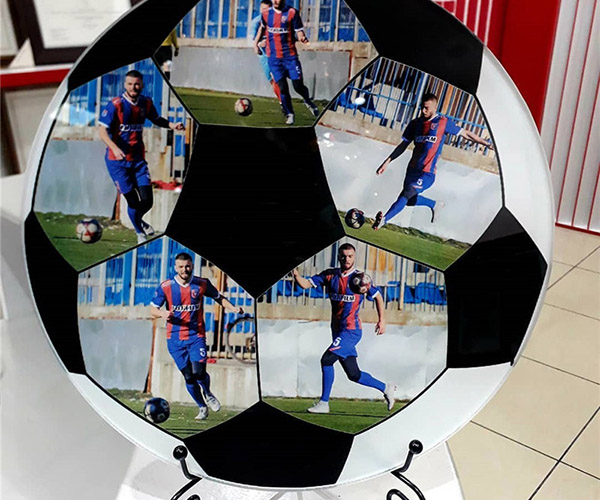

Glass Printing

Ceramic Printing

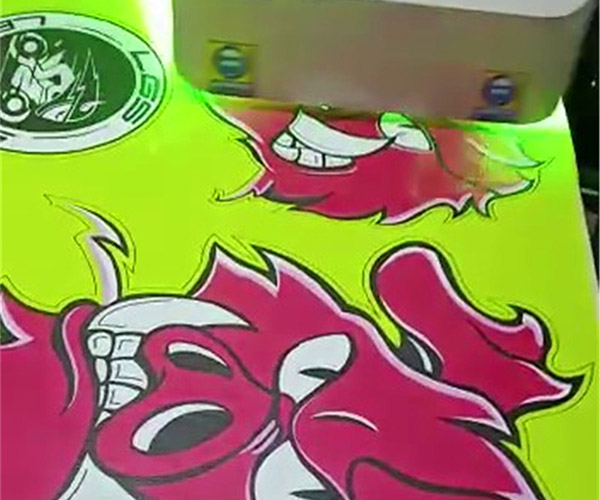

UV printer is used mainly for printing on things like customized products and other flat surface objects. UV has a wide range of substrates that can be printed on like glass, metal, wood, plastics, ceramics and many more,Let us see some printed samples by YDM UV Printer

Leather Printing

Metal Printing

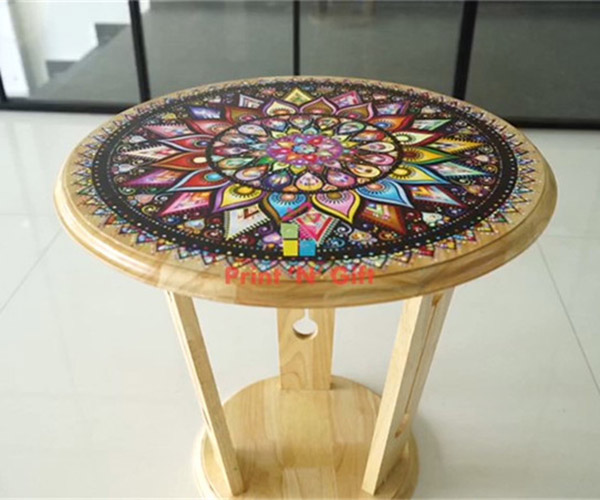

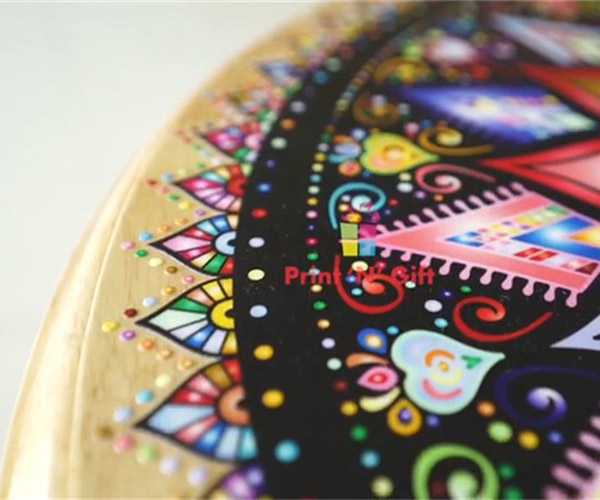

Wood Printing

Wood Printing

Customized Gift Box Printing

Welding Photos Printing

Canvas Printing

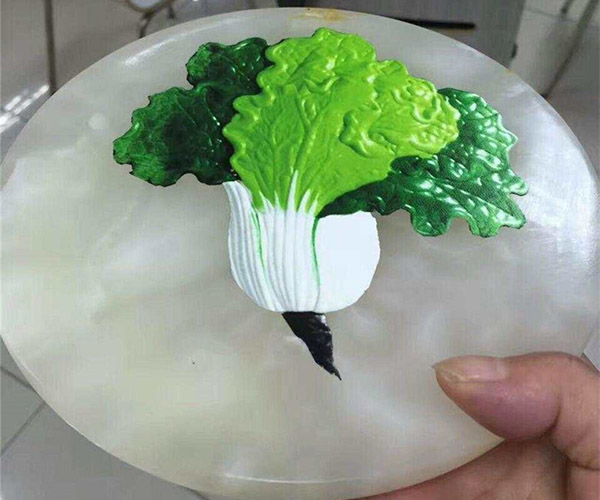

Marble Printing

Embossed 3D printing

For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.

After Sale Service

Tech Support

As the manufacturer of printing machine,YDM development always depends on the needs from customers,we provide the training for customers freely,and instructions that how to install the uv printer step by step.

On-Site Installation

We also provide our international customers with the on-site installation based on the customers’ need,or authorize our distributors to install the printing machine.

Online Service

Whatsapp/Wechat/Skype/Email and others available,and remote operation will fix the problems on time to save your maintenance cost.

YDM offers 12 MONTHS WARRANTY on our uv printing machine. We create the service group that our professional technical support will follow you via telephone, email, live chat and skype video so you can contact us on time if you have a question or run into difficulty.

Training
we train and and encourage our customers to service and maintain their own printers.It is easy job for you with our professional instructions.If uv printer is sold by YDM's distributors,we will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives.
