YDM Industrial grade 4030 flatbed printer

  • YDM Industrial grade 4030 flatbed printer
  • YDM Industrial grade 4030 flatbed printer
  • YDM Industrial grade 4030 flatbed printer
  • YDM Industrial grade 4030 flatbed printer

Product Detail

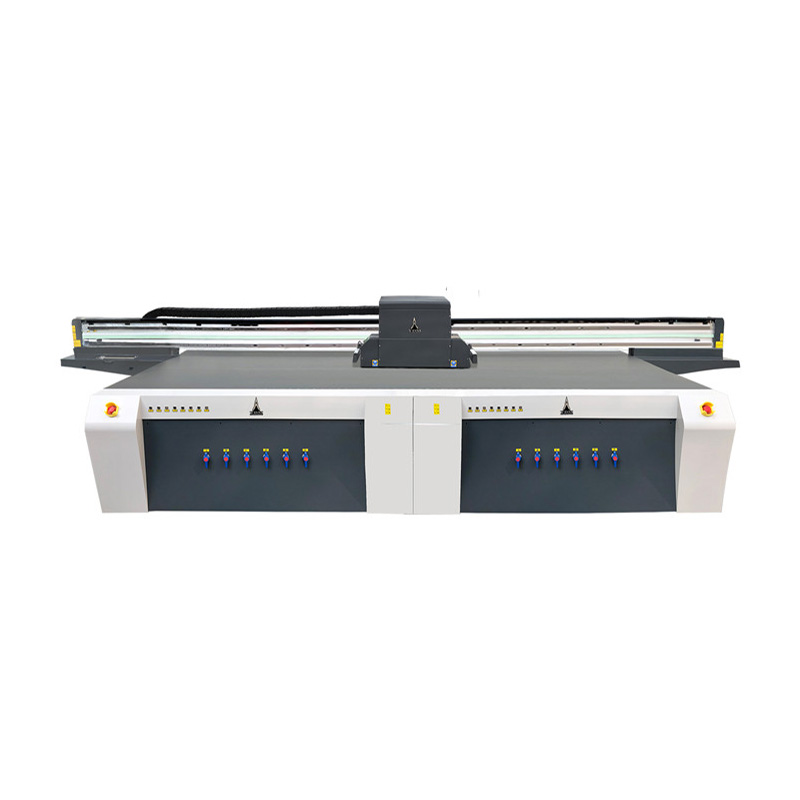

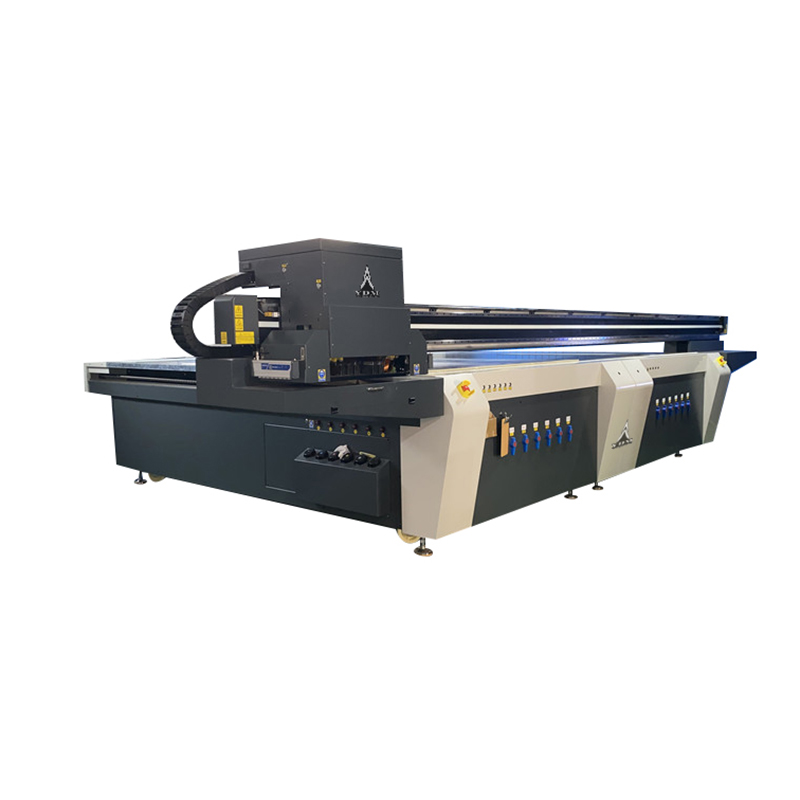

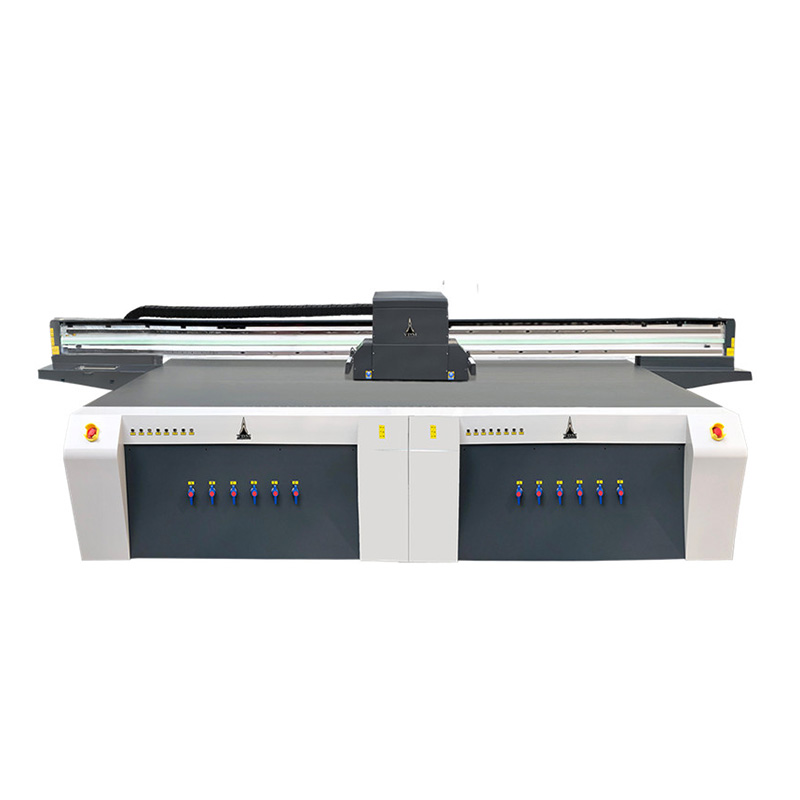

Product Picture





Product Parameters

Product Name:  YDM Industrial grade 4030 flatbed printer

Print Technology
Printer Model 4030 UV Printer
Max. Print size 4000*3000mm
Print head model Toshiba CE4M,Ricoh G5,G6
Qty of Printhead 4-16 pcs/2-8pcs
Print Direction Unidirectional /Bi-directional
Print head height Semi-Automatic height adjustment (option Auto)
Print head cleaning Manual cleaning system
Print resolution Toshiba CE4M4pass: 600*600 dpi
6 pass: 600*900 dpi
8 pass: 600*1200 dpi
RICOH G54 pass: 720*600 dpi
6 pass: 720*900 dpi
8 pass: 720*1200 dpi


Ink System
Ink type UV ink
Ink color CMYK/ CMYK+W/CMYK+W+V/2*CMYK+2*W+2*V
 Ink tank volume 3.5L
Ink supply Negative ink supply system
Drying type Imported LED lamp curing
 White ink stirring Available
While ink circulation Available
Media type Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard & others thickness 100mm or customized


Operation Language Chinese / English
Operation system Windows XP/ Windows 7/Windows 10
Operation platform Completed vacuum adsorption platform
Operation Environment Temperature:20℃~28℃ Humidity:40% RH~60% RH
Computer configuration System:XP,win7,win10,32/64
CPU:≥ Intel i5
Hard Disk: SATA 500G, NTFS
CD Rom: DVD recordable
Space for Disk C : ≥100 G
RIP software UnitedFancy/Printfactory( option :Photoprint)
Interface LAN
Color control Comply with ICC standards with curve and density adjustment function.
Power supply AC220V,50/60HZ
Power consumption 3.5 KW
Noise Standby < 32dB Working < 65dB

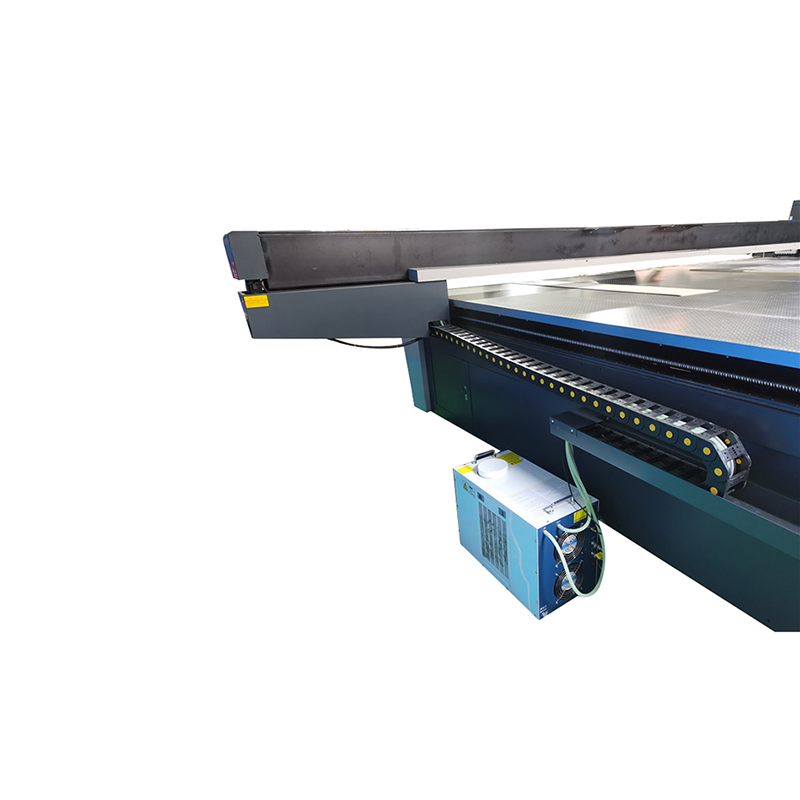

The UV lamp LED curing, 50000 hours long lifetime, water cooling

product details


Vacuum Platform

Anti-oxidative aluminum vacuum platform with 31000 PCS vacuum adsorption points, the diameter of each small adsorption point is 2mm, the platform Max. Printing size 4.0*3.0m.
Many vacuum adsorption points and two sets 2.1KW vacuum adsorption motors can fit media in different sizes & increases small batch printing efficiency.

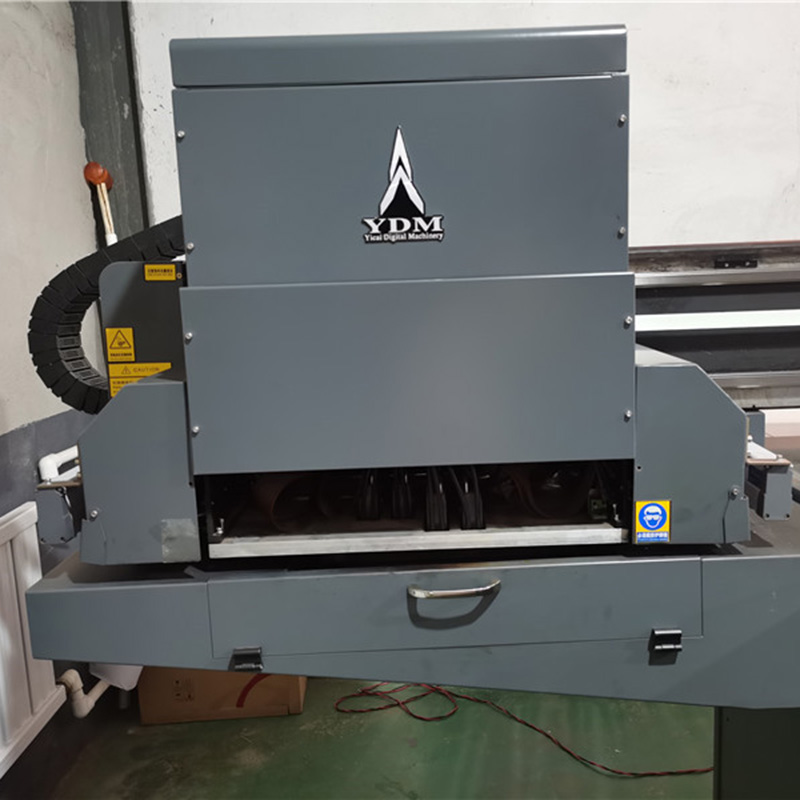

The newly designed carriage,normal print height is 10cm,the printing height can be customized up to 40 cm based on the needs of customers. Also it has one-button cleaning head function, UV led curing function and static elimination function. The Machine automatic blanking processing print head base, can better meet customer's printing needs.

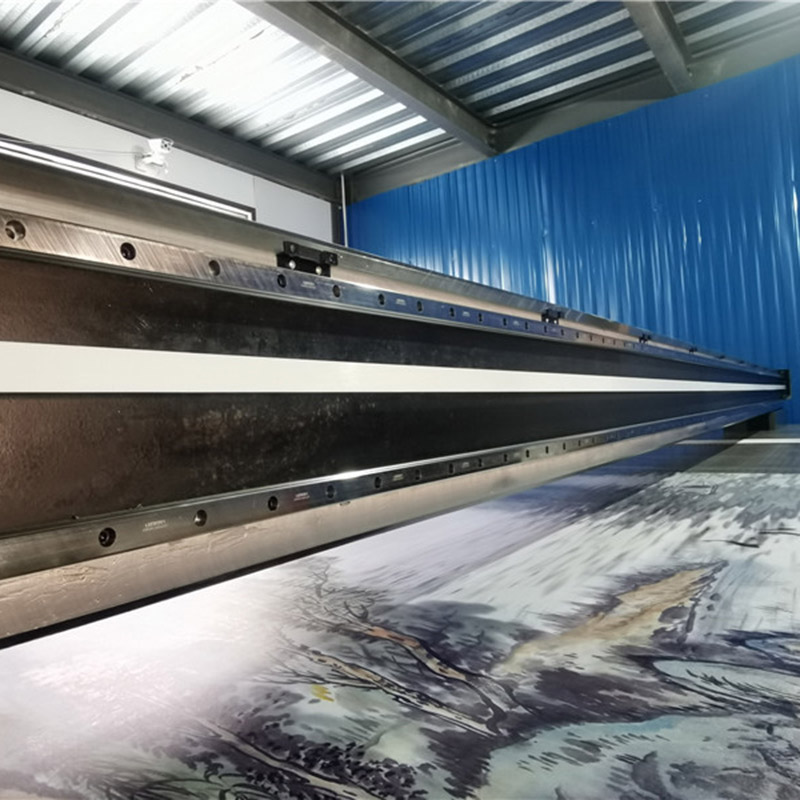

Industrial metal beam

The mould is poured as a whole, and the machine automatically engraves the metal beam,to ensure that the printer will not produce errors for a long time.
Dual WON silent guide rails and 22 mm width ONK silent belt, which to ensure high-speed and silent movement of the carriage when printing.

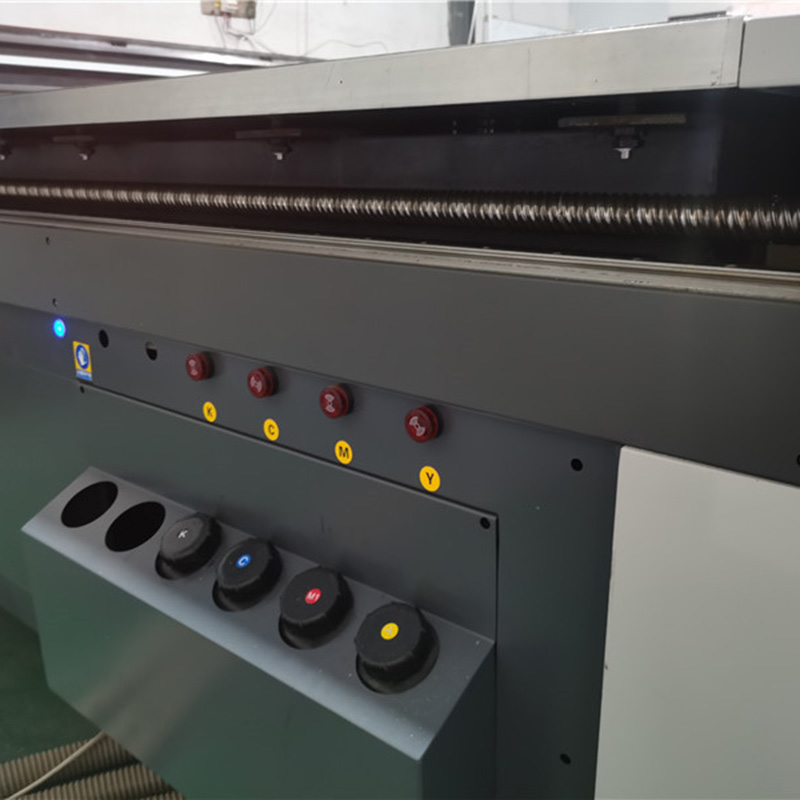

ink tank

Large volume ink tank

The Y-axis uses the screws drive to replace the traditional belt drive to ensure the accuracy of the printer beam when moving.
3.5L large volume ink tanks equipped with Ink lack alarm,which can meet the continuous production.

OEM available always for you based on our rich experience in uv printer since 2005’s.

FOR printer, according your needs, you can choice install  Toshiba CE4M or RICOH G5/G6 print head.

RICOH G5 Print Head


Toshiba CE4M Print Head

2513 (22)

Whether you need a high-precision printer or fast printing printer, we can customize the printing solution that meet your needs.


CMYK W V can be printed at the one time,UV varnish is cured by passing it under an ultraviolet light which quickly dries and hardens the varnish, creating a super high gloss varnish and offers the highest protection between varnish, aqueous and UV. Varnishing a product with UV will make it look much more professional, as well as making it much more attractive.Varnishing increases the perceived quality of the product. In addition, it is an economical and user-friendly process that can be easily applied by adding spot finishes or additional processes to the entire sheet. It can be manipulated to achieve the desired result


Productive Process

Machine Assembly&Testing

01 Machine Dynamic Design

02 Raw Materials Preparation

03 Nc Sawing Processing

04 Machine Modular Cutting Processing

05 Accessories Processing

06 Lathe Bed Processing

07 Aluminum Crossbeam Process

08 Welding Process

Printe test pictures

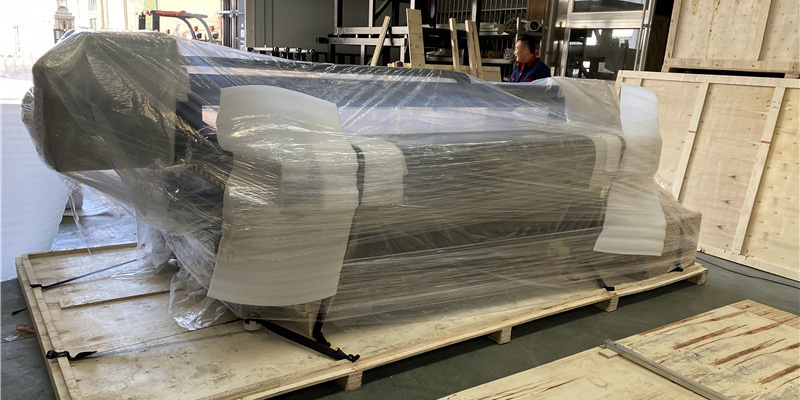

Package Delivery

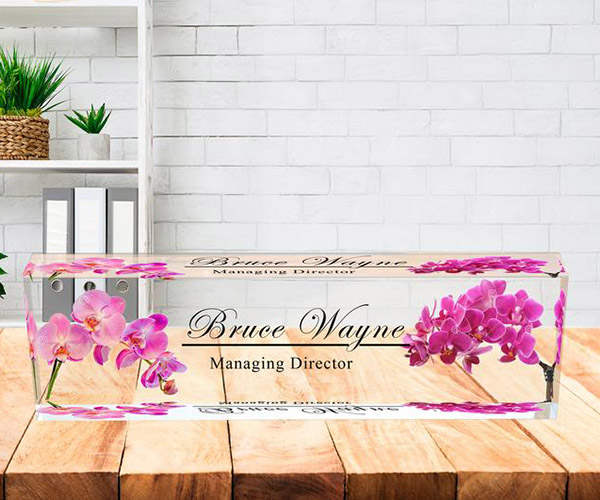

Acrylic Printing

Glass Printing

Ceramic Printing

UV printer is used mainly for printing on things like customized products and other flat surface objects. UV has a wide range of substrates that can be printed on like glass, metal, wood, plastics, ceramics and many more,Let us see some printed samples by YDM UV Printer

Leather Printing

Metal Printing

Wood Printing

Wood Printing

Customized Gift Box Printing

Welding Photos Printing

Canvas Printing

Marble Printing

Embossed 3D printing

For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.
